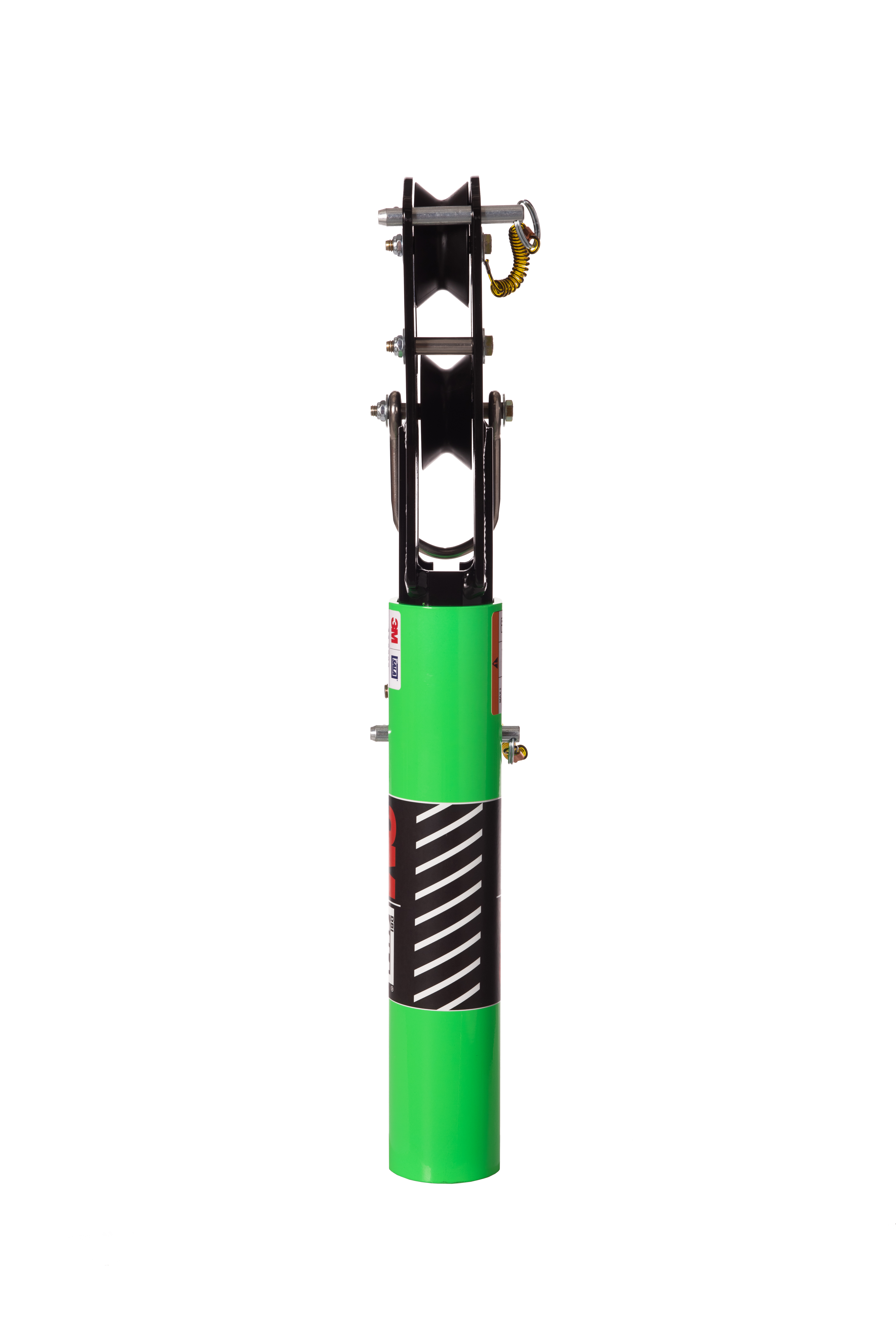

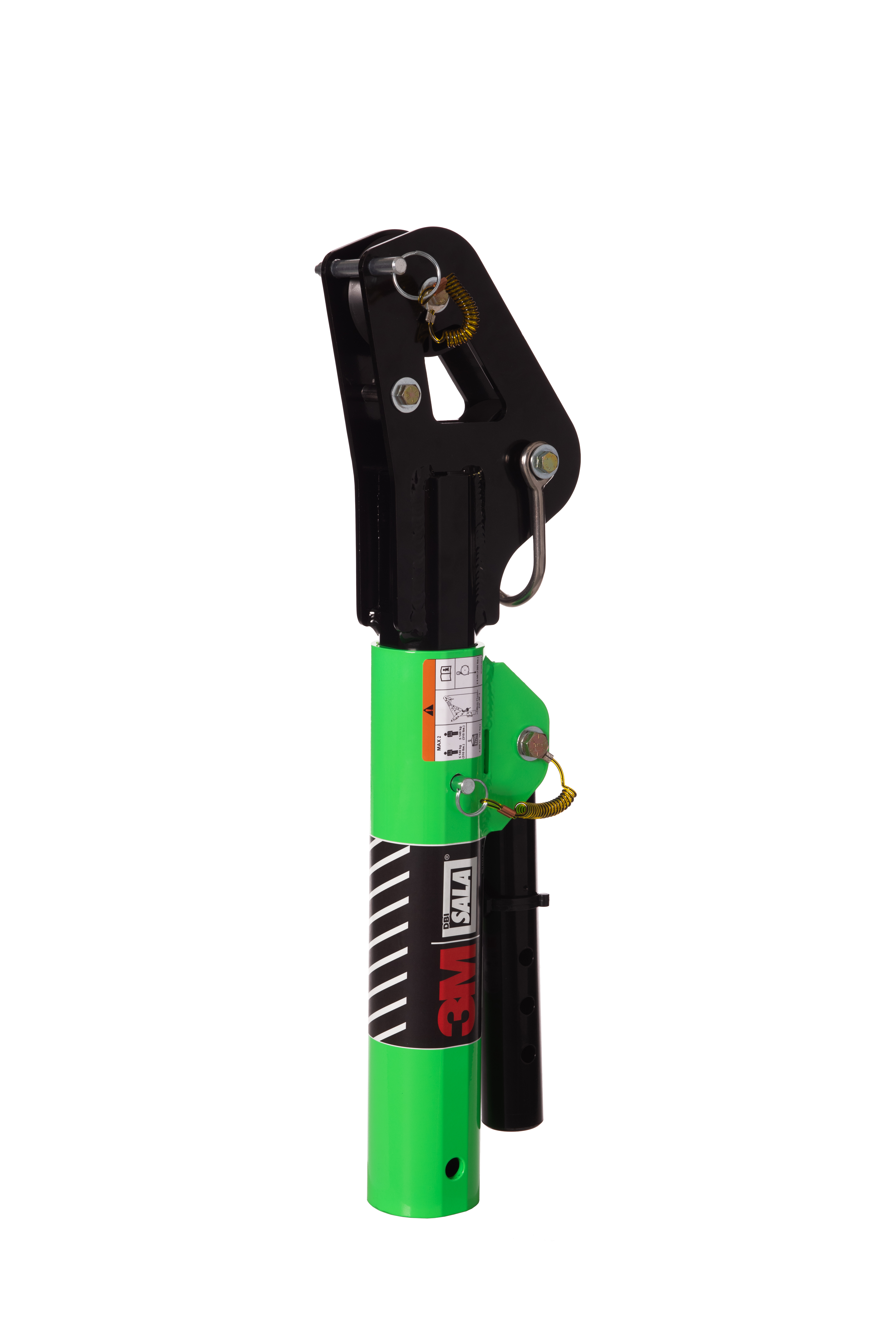

3M™ DBI-SALA® Confined Space, Short Reach Davit Arm, High Capacity, 8000110
7100313956
3M ID 7100313956 old 3M ID 70804503517 Local Catalog ID Z8000110 Distribution Chain Material Status Code 95 Division Name Personal Safety Division Commodity Class Code 6090 Brand DBI-SALA® Commodity Class Description Fall Protection Solutions Product Name 3M™ DBI-SALA® Confined Space, Short Reach Davit Arm, High Capacity, 8000110 Description 3M™ DBI-SALA® Davit High Capacity Systems are designed for manhole and confined space entry/retrieval applications. The davit arm is constructed of lightweight materials including high-strength aluminium. The davit pivots for ease-of-rescue and has adjustment for overhead clearance restrictions. The Davit Arm adjusts to fit many standard entries. Many other portable and fixed bases are available to suit any job site need. Long Description Use 3M™ DBI-SALA® Davit Arms with 3M™ DBI-SALA® Davit Bases as part of a confined space rescue and work support system. Our davit assembly is constructed primarily of custom extruded aluminium, and finished in a mixture of hi visibility green and gloss black powder coatings. The assembly features a modular design, allowing it to be separated into multiple pieces for easy transport and storage. This modular makeup also enables seamless interchangeability between long and short reach davit arm assemblies. The davit arm height and reach are both adjustable, and securely locked using detent pins which are attached using retracting pin lanyards that help prevent breaks and snags. New design makes the davit height adjustment process two times faster than previous 3M™ DBI SALA® models. Four independent anchorage locations are available and certified to EN795:2012 for fall arrest. Multiple user fall arrest is supported for up to two users weighing 140 kg each, meeting the requirements of CEN/TS 16415:2013. Material handling capabilities are made possible by meeting the requirements of the machinery directive for manually operated lifting 2006/42EC. Capacity is granted up to 205 kg in mobile bases, and 340 kg in fixed bases when suitable devices are equipped. Rescue is also made possible meeting the requirements of EN1496:2012 when used with approved 3M rescue devices. All 3M™ DBI SALA® HC bases are designed to be used in combination with 3M™ DBI SALA® HC Davit Masts, and together form a perfectly matched confined space rescue and work support system. When it comes to confined space entry/rescue, it's essential that equipment operates perfectly and quickly. 3M has an extensive line of rescue and retrieval systems with decades of proven field service. Bullet 1 Short and long reach arms/offset davit arms, lower mast and complete systems Bullet 2 Integrated 22 kN (5,000 lbs) mast anchorage point Bullet 3 Fall arrest rated in all davit offset mast positions Bullet 4 Combine with 1 or 2 lower mast extensions Bullet 5 Integral secondary fall arrest anchorage point Bullet 6 Built-in primary and secondary pulleys Bullet 7 Detent and knob style adjustment Keywords "3M, DBI-SALA, horné rameno, systém davitov, vstup do obmedzených priestorov, záchrana, ľahká konštrukcia, hliníkový materiál, nastaviteľná výška, nastaviteľný dosah, zachytávanie pádu, modulárny dizajn, prenosnosť, medzná hlavica, bezpečnostné kotvové body, ochrana zdravia, bezpečnosť pri práci, stavby, priemysel, EN795:2012, CEN\/TS 16415:2013, ručné zdvíhanie, záchranné zariadenia, nosná kapacita, vstupné systémy, systémy záchrany, bezpečnostné riešenia." Product Color - Zelená
- Čierna
Overall Length (Metric) 92.71 cm Overall Height (Metric) 1400.0 milimeter Net Weight (Metric) 6.4 Dangerous Goods Indicator ZND EU Taric Code 7616999099 eCl@ss 10 classification group 13090401 eCl@ss 11 classification group 13090401 Base Unit (B) - Article Number 00840779188222 Base Unit (B) - Base Unit EA Base Unit (B) - Unit EA Base Unit (B) - Item Quantity 1.0 Base Unit (B) - Mapped From Activity Unit Base Unit (B) - Metric Cubic Dimension 946.953 IN3 Base Unit (B) - Metric Height Dimension 4.25 IN Base Unit (B) - Metric Length Dimension 28.75 IN Base Unit (B) - Metric Weight 16.595 LB Base Unit (B) - Metric Width Dimension 7.75 IN Consumer (2) - Unit EA Consumer (2) - Article Number 00840779188222 Consumer (2) - Item Quantity 1.0
