3M™

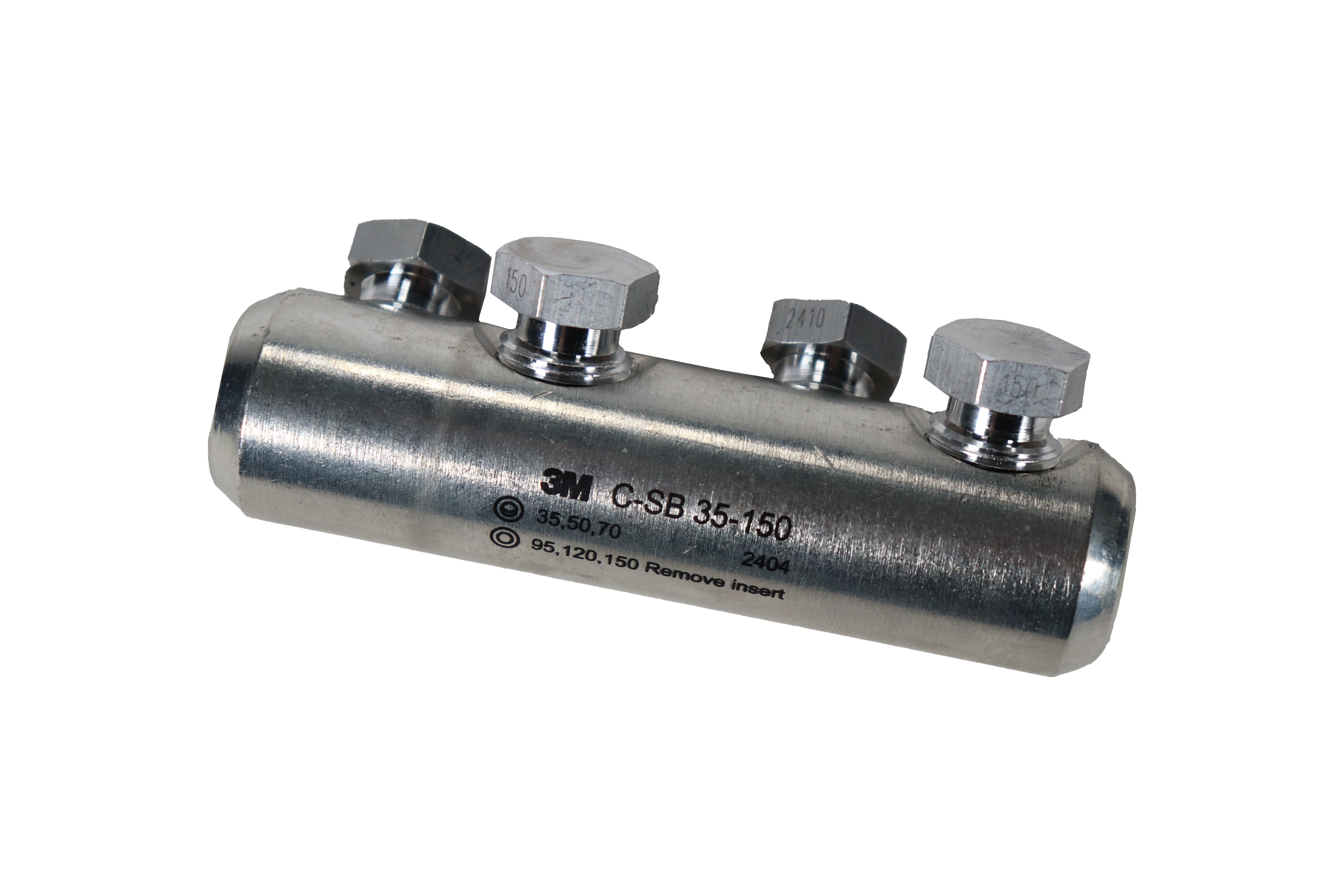

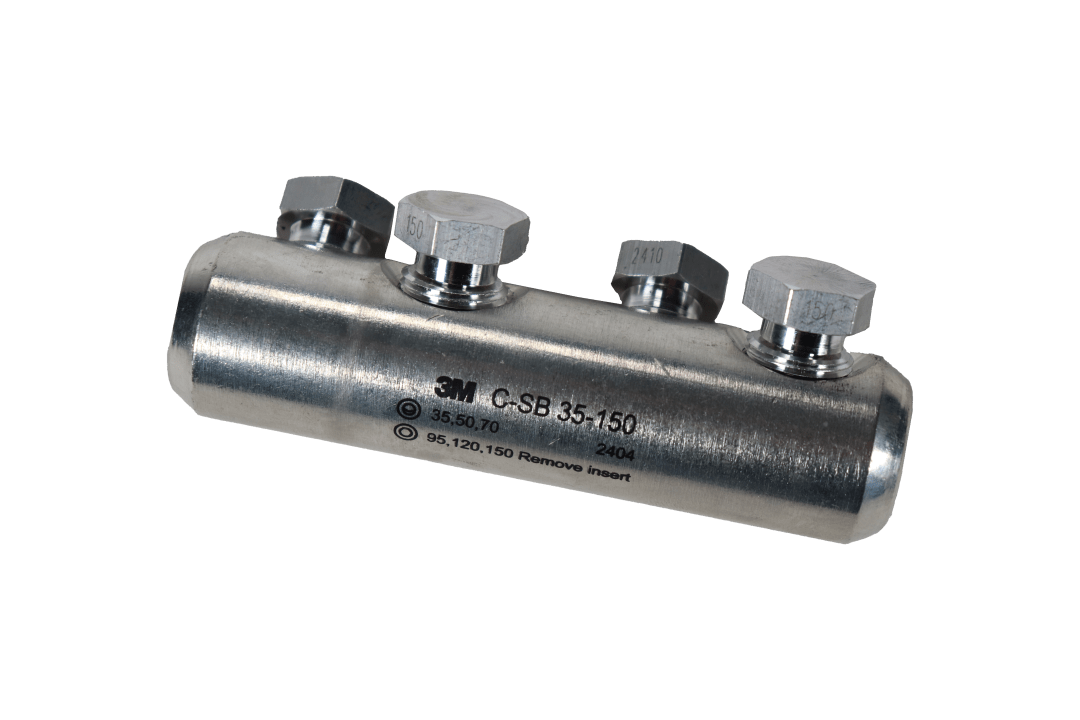

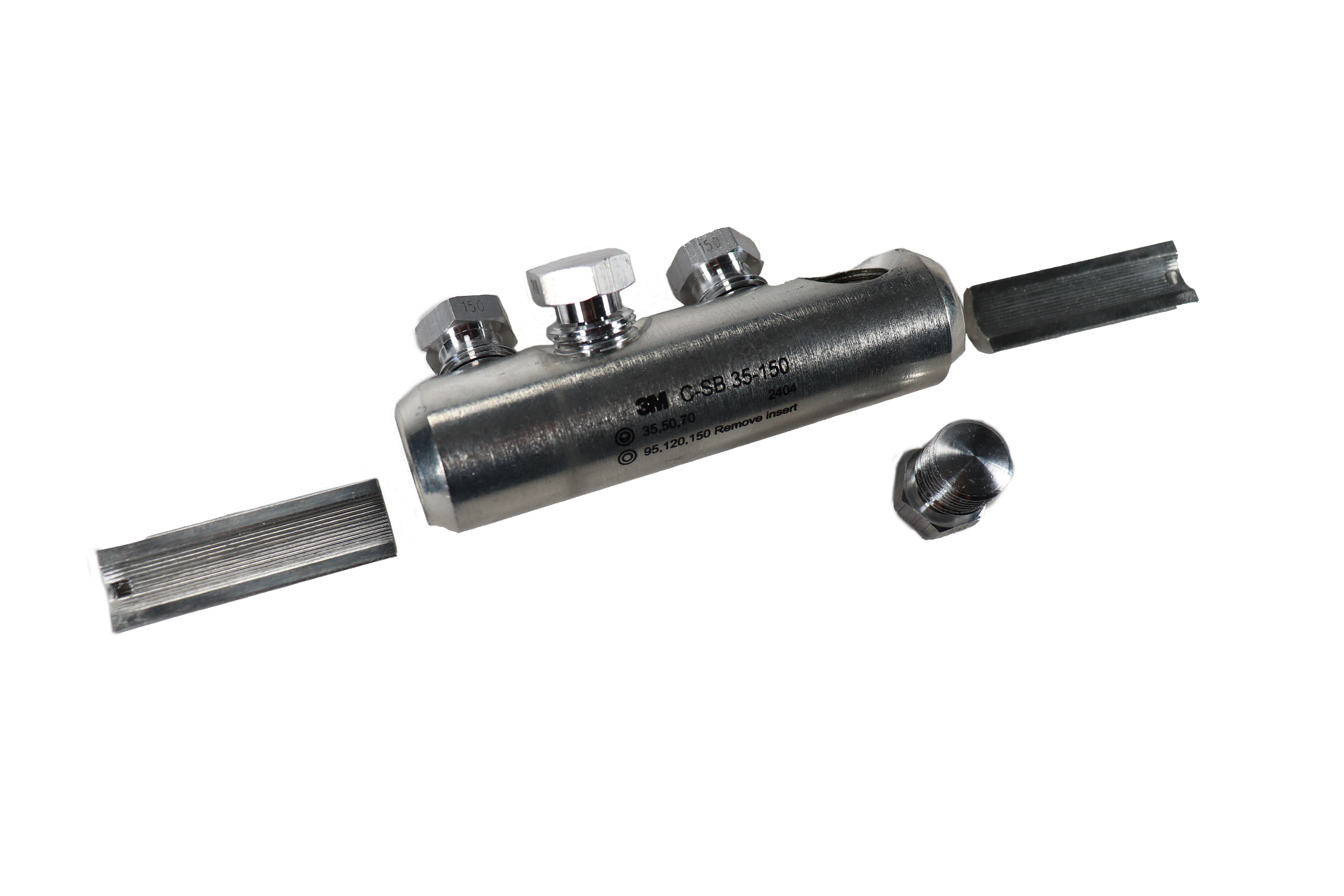

3M™ Mechanical Shearbolt Connector C-SB, 35-150/4L, 35-150 mm², 12 per Case
7100377973
3M ID 7100377973 Division Name Electrical Markets Division Commodity Class Code 2320 Product Type Konektor Brand 3M™ Commodity Class Description Cable Acc,CS and L&M Product Name 3M™ Mechanical Shearbolt Connector C-SB, 35-150/4L, 35-150 mm², 12 per Case Description The 3M™ Mechanical Shearbolt Connector C-SB are mechanical aluminum alloy connectors designed for connecting cables and electrical equipment. Suitable for IEC 60228 conductors up to 36kV, these connectors cover a wide cross-section range from 35 mm² to 630 mm² with just four sizes. The torque design allows for installation using only a socket spanner or wrench, maintaining consistent length and outer diameter post-installation. Long Description For connection of aluminum and aluminum alloy, IEC 60228 – Class 1 and Class 2, cables on LV and MV underground networks up to 36 kV from 35 mm² up to 630 mm². For connection of copper, IEC 60228 – Class 1 and Class 2, cables on LV and MV underground MV underground networks up to 36 kV from 35 mm² up to 630 mm². Bullet 1 Easy installation with a socket panner or a wrench Bullet 2 Suitable for IEC 60228 conductors up to 36kV Bullet 3 Suitable for cable conductor range between 35mm² and 630mm² in four sizes Dangerous Goods Indicator ZND TDS Required Nie EU Taric Code 8536901000 Base Unit (B) - Article Number 00068060583994 Base Unit (B) - Base Unit EA Base Unit (B) - Unit EA Base Unit (B) - Article Number Type Code EAN Base Unit (B) - Item Quantity 1.0 Base Unit (B) - Mapped From Activity Unit Base Unit (B) - Metric Cubic Dimension 160650.0 MMQ Base Unit (B) - Metric Height Dimension 45.0 MM Base Unit (B) - Metric Length Dimension 105.0 MM Base Unit (B) - Metric Weight 172.0 G Base Unit (B) - Metric Width Dimension 34.0 MM Consumer (2) - Unit EA Consumer (2) - Article Number 00068060583994 Consumer (2) - Article Number Type Code EAN Consumer (2) - Item Quantity 1.0 Shipper (6) - Unit CS Shipper (6) - Article Number 50068060583999 Shipper (6) - Article Number Print Indicator true Shipper (6) - Article Number Type Code ITF Shipper (6) - Item Quantity 12.0 Pallet (8) - Item Quantity 1176.0 Pallet (8) - Unit PAL
