Oregon Harvester Bar, 3/4", 36 in, RSN
ImagesDownload

Oregon Harvester Bar, 3/4", 36 in, RSN

361SNCT146

  • DescriptionAdaptable, Consistent and Durable. Oregon 3/4" pitch harvester replacement sprocket nose (RSN) guide bars fit at broad range of timber harvesting equipment. Built tough using specialized 3/8" thick alloy-steel with precision-milled grooves. Replacement nose kits are available to maximize bar life.
    Bullet Points
    • Equipped with specific features that facilitate superior performance for a multitude of timber harvesting applications
    • The induction hardening process increases the longevity of your guide bar with precision heat-treated rails and added resistance to wear and chipping
    • Replaceable sprocket noses simplify on-site maintenance
    • Achieve higher productivity output with our straight and square-milled grooves that are designed for consistency, stability, and decreased wear
    • Engineered with high-grade alloy steel to minimize wear, chipping, and spreading
    • LubriTec increases the life of your guide bar and saw chain with advanced precision to allow the chain drive links and oil to have closer contact, significantly reducing oil waste

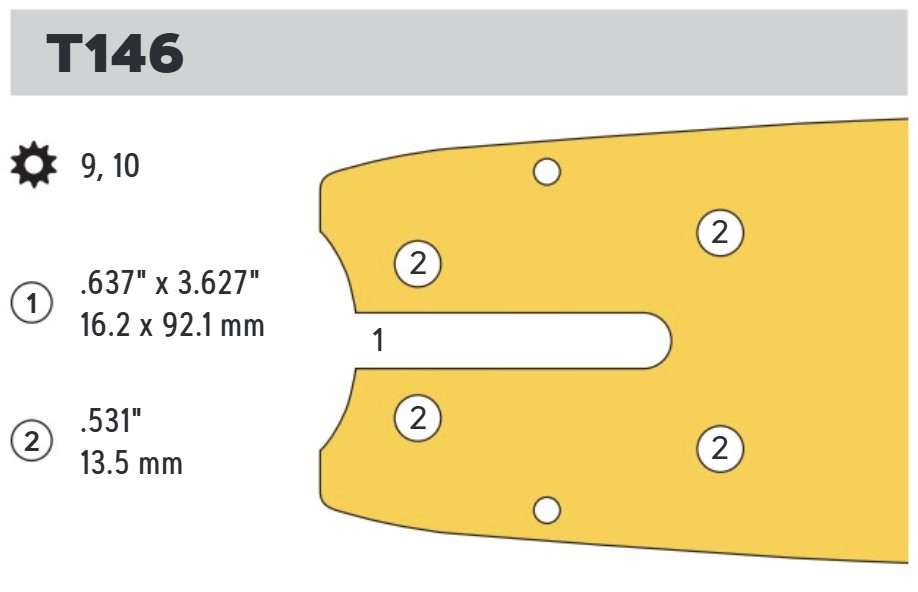

    • Image shown may not reflect actual bar tail motor mount,  check Oregon Harvester Catalog for actual tail mount configurations
    UPC036577417033
    EAN5400182650263
    Country of originCanada
  • Packaged Length42.0"
    Packaged Width9.25"
    Packaged Height1.0"
    Weight (with Packaging)17.51 Lb
    Packaged LengthDepth Pack0.0 cm
    Packaged Width Pack0.0 cm
    Packaged Height Pack0.0 cm
    Gross Weight Carton0.0 Lb
  • Product TypeHarvester Guide Bars
    Prop 65 DescriptionWARNING: This product can expose you to Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    OEM Product ModelsWaratah - HTH-24|Waratah - HTH624
    OEM Product Parts
    • GB - WB36-122NC
    • Iggesund - WB36
    • Archer - 36Q1-BC-46
    • GEM - 302-06-36-G
    • GB - WB2-36-122BC
    • TRAIL - 560R5736
    • Waratah - F350672
