Oregon Harvester Bar, 3/4", 43 in, RSN
ImagesDownload

Oregon Harvester Bar, 3/4", 43 in, RSN

431SNCT043

  • DescriptionAdaptable, Consistent and Durable. Oregon 3/4" pitch harvester replacement sprocket nose (RSN) guide bars fit at broad range of timber harvesting equipment. Built tough using specialized 3/8" thick alloy-steel with precision-milled grooves. Replacement nose kits are available to maximize bar life.
    Bullet Points
    • Equipped with specific features that facilitate superior performance for a multitude of timber harvesting applications
    • The induction hardening process increases the longevity of your guide bar with precision heat-treated rails and added resistance to wear and chipping
    • Replaceable sprocket noses simplify on-site maintenance
    • Achieve higher productivity output with our straight and square-milled grooves that are designed for consistency, stability, and decreased wear
    • Engineered with high-grade alloy steel to minimize wear, chipping, and spreading
    • LubriTec increases the life of your guide bar and saw chain with advanced precision to allow the chain drive links and oil to have closer contact, significantly reducing oil waste

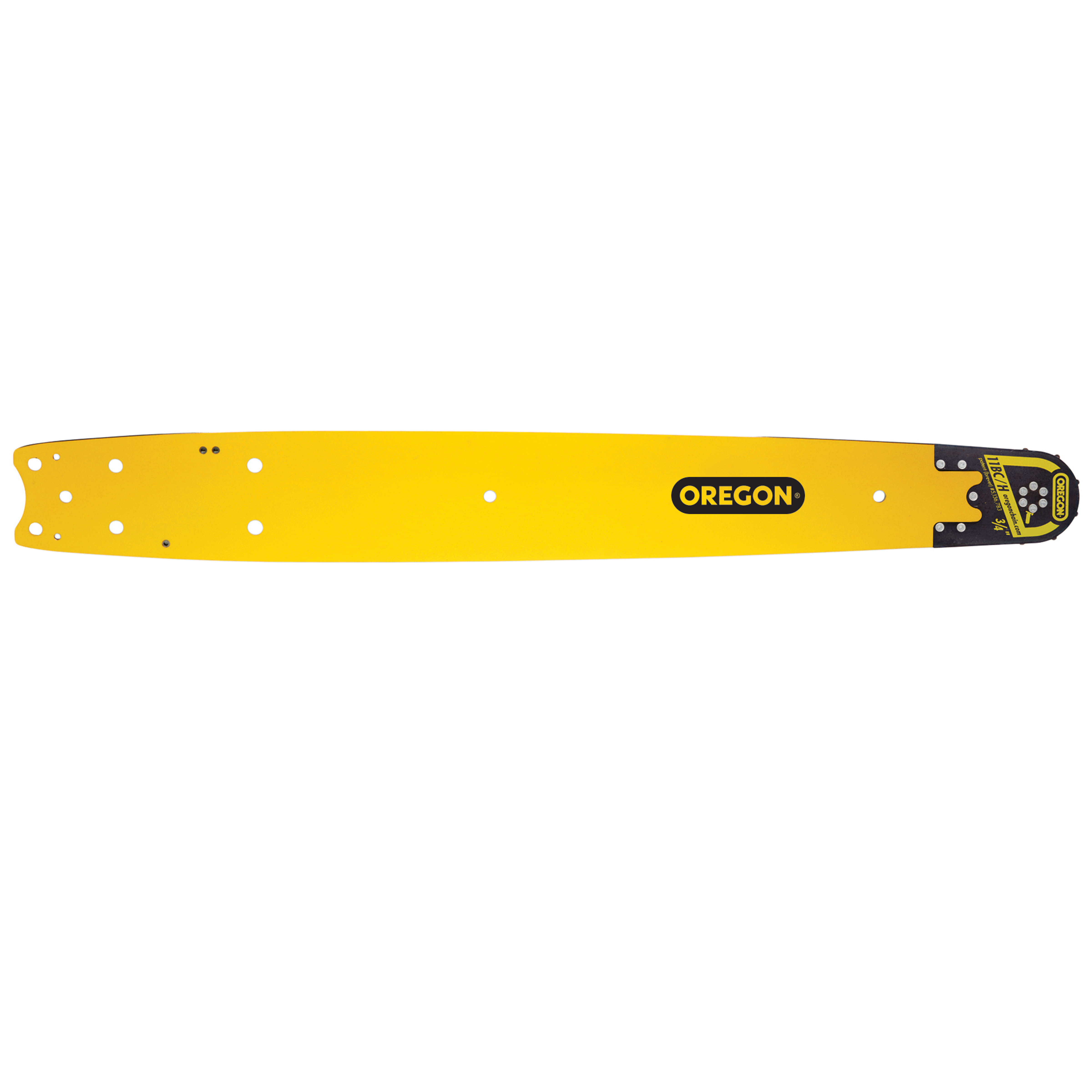

    • Image shown may not reflect actual bar tail motor mount,  check Oregon Harvester Catalog for actual tail mount configurations
    UPC036577403166
    EAN5400182181743
    Country of originCanada
  • Packaged Length49.0"
    Packaged Width9.25"
    Packaged Height1.0"
    Weight (with Packaging)21.65 Lb
    Packaged LengthDepth Pack0.0
    Packaged Width Pack0.0
    Packaged Height Pack0.0
    Gross Weight Carton0.0 Lb
  • Product TypeHarvester Guide Bars
    Prop 65 DescriptionWARNING: This product can expose you to Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    OEM Product ModelsERI - ERI|Hahn - HPL-220/C|Hahn - HTL-250GT|Hahn - HSG-110B|Hahn - HSW-110/C|Timbco - 24inch or 28inch or 33inch saw head|Hahn - HTL-300/F
    OEM Product Parts
    • Carlton - 43H35G7SN
    • GB - TM43-122NC
    • Iggesund - T43
    • Archer - 43Q1-BC-43
    • CSI - 400808
    • GEM - T5016SNG
    • GB - TM-43-122BC
    • TRAIL - 505R6643
