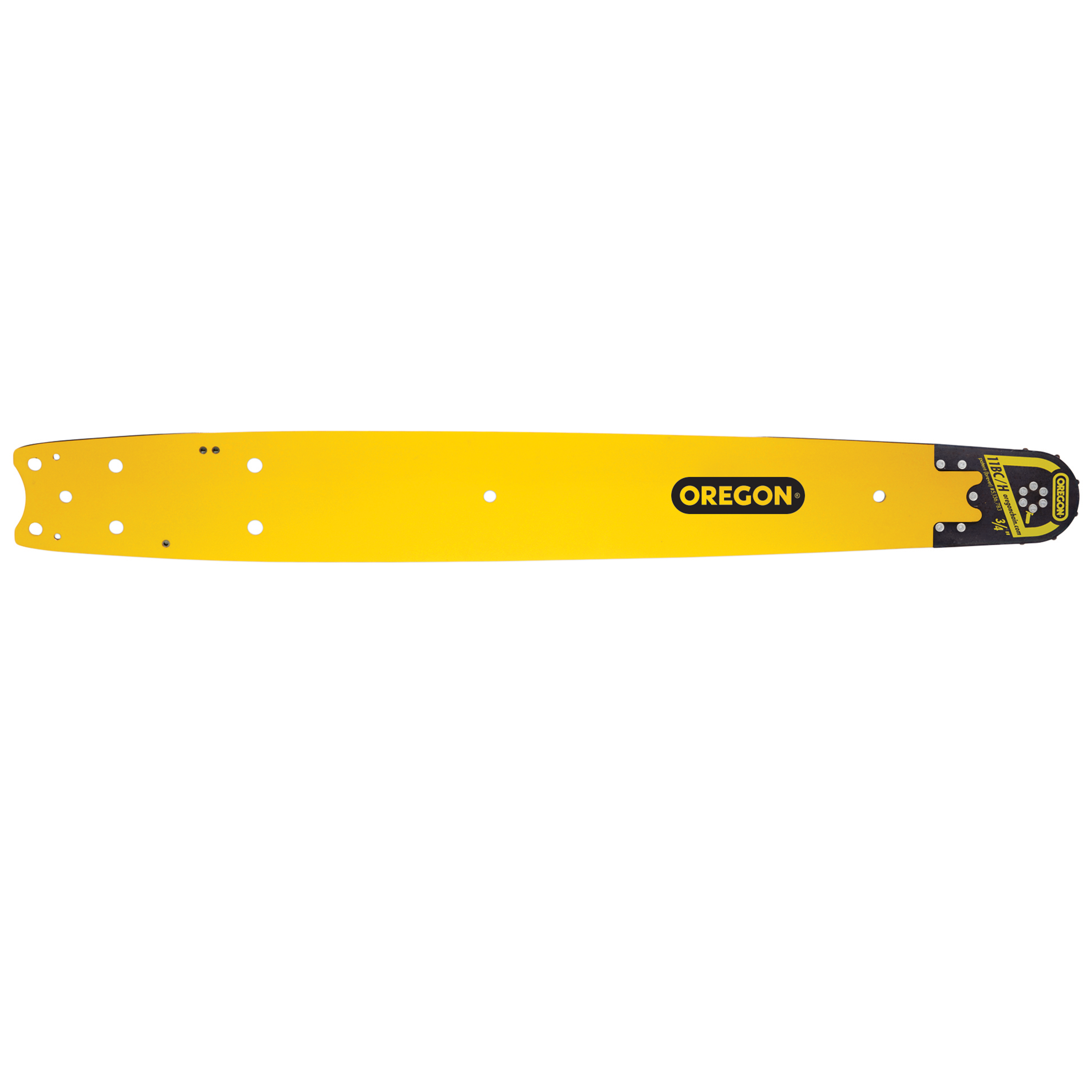

Oregon 45 in Harvester RSN Bar, 3/4" .122" ga (451SNCT138)
ImagesDownload

Oregon 45 in Harvester RSN Bar, 3/4" .122" ga (451SNCT138)

451SNCT138

  • DescriptionAdaptable, Consistent and Durable. Oregon 3/4" pitch harvester replacement sprocket nose (RSN) guide bars fit at broad range of timber harvesting equipment. Built tough using specialized 3/8" thick alloy-steel with precision-milled grooves. Replacement nose kits are available to maximize bar life.
    Bullet Points
    • Equipped with specific features that facilitate superior performance for a multitude of timber harvesting applications
    • The induction hardening process increases the longevity of your guide bar with precision heat-treated rails and added resistance to wear and chipping
    • Replaceable sprocket noses simplify on-site maintenance
    • Achieve higher productivity output with our straight and square-milled grooves that are designed for consistency, stability, and decreased wear
    • Engineered with high-grade alloy steel to minimize wear, chipping, and spreading
    • LubriTec increases the life of your guide bar and saw chain with advanced precision to allow the chain drive links and oil to have closer contact, significantly reducing oil waste
    • Image shown may not reflect actual bar tail motor mount,  check Oregon Harvester Catalog for actual tail mount configurations
    UPC036577417156
    EAN5400182650386
    globalTradeItemNumber (GTIN)10036577417153
    Country of originCanada
  • Packaged Length50.0"
    Packaged Width9.25"
    Packaged Height1.0"
    Weight (with Packaging)22.52 Lb
    Packaged LengthDepth Pack0.0
    Packaged Width Pack0.0
    Packaged Height Pack0.0
    Packaged LengthDepth Carton50.0"
    Packaged Width Carton9.25"
    Packaged Height Carton1.0"
    Gross Weight Carton22.5 Lb
  • Product TypeHarvester Guide Bars
    Prop 65 DescriptionWARNING: This product can expose you to Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    OEM Product ModelsHultdins - 350|Hultdins - SUPERFELL 851|Hultdins - SUPERCUT 300|Keto - 100R|Keto - 750|Lako - (SUPERCUT 300) 850 PREMIO|Hultdins - SUPERSAWS 4000S|Keto - 1000|Lako - 950 PREMIO
    OEM Product Parts
    • GB - KE45-122NC
    • Iggesund - H45
    • Archer - 45Q1-BC-38
    • CSI - 401168
    • GEM - K504SN-45G
    • GB - KE-45-122BC
    • TRAIL - 535R6745
    • Waratah - WA114584
