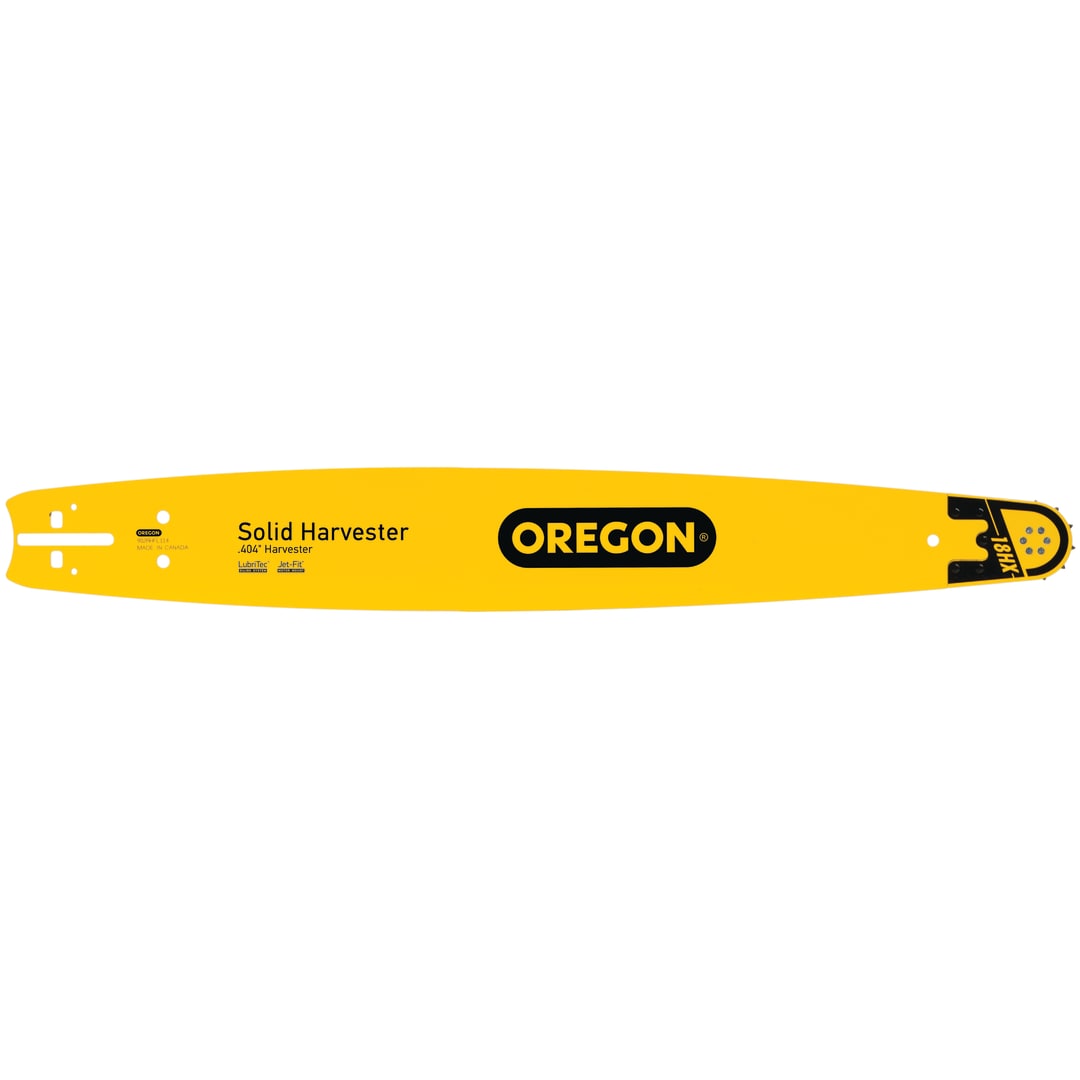

Oregon 64cm Harvester Bar, RSN .404" .080" ga (642RHFN104)
ImagesDownload

Oregon 64cm Harvester Bar, RSN .404" .080" ga (642RHFN104)

642RHFN104

  • DescriptionFaster. Stronger. Longer Lasting. Oregon solid harvester (Sprocket nose) guid bar delivers superior performance in demanding, high-speed conditions. This bar resists chipping and features outstanding springback. High-grade alloy-steel material and induction-hardened bar rails make it tough and durable. Harvester Replaceable Sprocket Nose bars extend the life of the bar body. The RSN’s strong and rigid design helps accelerate the return on your investment by increasing workload efficiency with quick and easy nose replacement in the field.
    Bullet Points
    • Guide bar RSN requires fewer rotations ultimately extending the life of your bar
    • .404" guide bars are equipped with unique features that facilitate superior performance in demanding, high-speed conditions
    • Guide bar RSN can be replaced in the field several times, decreasing downtime between cuts
    • LubriTec increases the life of your guide bar and saw chain with advanced precision to allow the chain drive links and oil to have closer contact, significantly reducing oil waste
    • The induction hardening process increases the longevity of your guide bar with precision heat-treated rails and added resistance to wear and chipping
    • Our straight and square-milled grooves are designed for consistency, stability, and decreased wear
    • Image shown may not reflect actual bar tail motor mount,  check Oregon Harvester Catalog for actual tail mount configurations
    UPC036577597735
    EAN5400182971276
    globalTradeItemNumber (GTIN)10036577597732
    Country of origin
    • 3331:US:United States
    • 1007:CA:Canada
    • 1004:CA:Canada
    • 3411:CA:Canada
    • 3110:CA:Canada
    • 3311:CA:Canada
  • Packaged Length25.0"
    Packaged Width6.35"
    Packaged Height1.0"
    Weight (with Packaging)7.15 Lb
    Packaged LengthDepth Carton25.5"
    Packaged Width Carton8.0"
    Packaged Height Carton5.5"
    Gross Weight Carton35.75 Lb
  • Product TypeHarvester Guide Bars
    Prop 65 DescriptionWARNING: This product can expose you to Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    OEM Product ModelsCaterpillar - 601 WITHOUT CHAIN TENSIONER|Caterpillar - HH55|Caterpillar - HH65|Caterpillar - 655|BRUTE FORCE - 14-24|BRUTE FORCE - 16-24|DYNA - SC-14|ECO LOG - HH 55|ECO LOG - HH 65|HALVERSON WOOD PRODUCTS INC. - HWP-140HD|HALVERSON WOOD PRODUCTS INC. - HWP-120FP|HALVERSON WOOD PRODUCTS INC. - HWP-140BFP|KELSA - PATU, FORESTERI - FORESTERI 20 RH|KELSA - PATU, FORESTERI - FORESTERI 22 RH|KELSA - PATU, FORESTERI - FORESTERI 25 RH|KELSA - PATU, FORESTERI - FORESTERI 30 RH|AFM - 45 CORONA|AFM - 55 HUSKY|Caterpillar - HH 55|Caterpillar - HH 65|G & R - 1850 RS: 10MM|Hahn - HFP 150 COMPACT|Hahn - HFP 160|Harricana - CANTRACK|Harricana - DELIMBER HM1290-50|Harricana - HM1750|Hultdins - SUPERCUT STD|Komatsu - 900T|Komatsu - 902H|Komatsu - 960 TENSIONER|Komatsu - 993|Lako Forest - 550 PREMIO|Pierce Pacific - CANTRACK|Pierce Pacific - HM1290 - 50 DELIMBER|Pierce Pacific - HM1750|Ponsse - H10|Ponsse - H53|Ponsse - H53E|Ponsse - H60|Ponsse - H73|Silvatec - 335|Silvatec - 440|Silvatec - 445|Valmet - 900|Valmet - 900T|Valmet - 902H|Valmet - 955|Valmet - 960: AUTOMATIC TENSIONER|Valmet - 993
    OEM Product Parts
    • Carlton - 9201-64-404
    • John Deere - 503357
    • John Deere - F057262
    • FLEX - 264M3
    • GB - WM2 21 80SM
    • GB XV - WM2 21 80XV
    • GEM - GEM 404 64 4W
    • Iggesund - BL2710-64
    • Qirui - LM21-80TS
