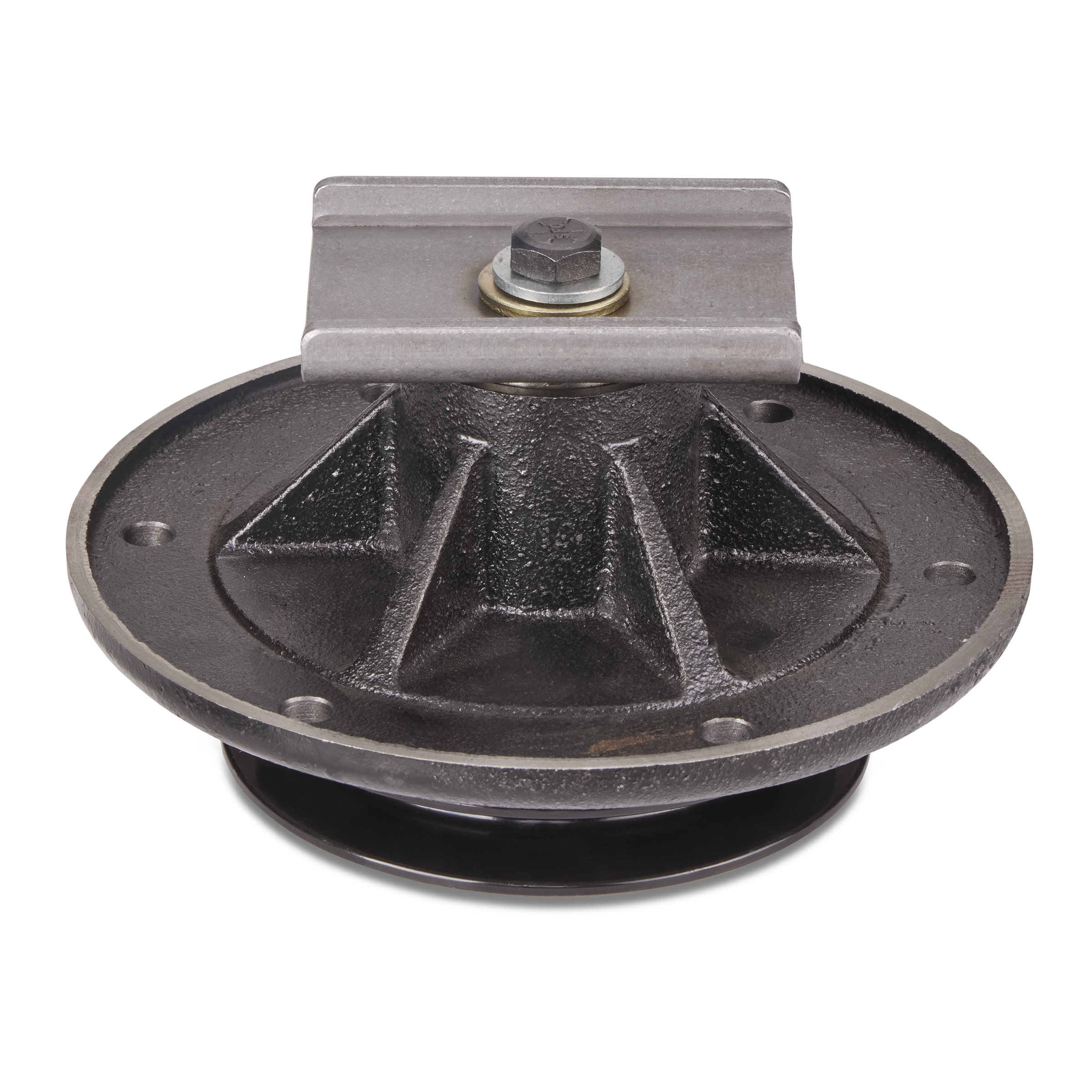

Spindle Assembly, Toro Models
ImagesDownload

Spindle Assembly, Toro Models

82-676

  • DescriptionThis spindle assembly fits 62 Z models and is for right hand and left hand spindles. This ships without grease and must be serviced before use.
    Bullet Points
    • Fits Toro Z253 and Z255 Z Master with 62" deck
    • For right hand and left hand spindles
    • Ships without grease and must be serviced before use
    • Pulley retaining nut must be torqued at 100-120 ft/lbs before use
    • Should be used with Oregon® 45-002 bearings
    UPC032488826766
    EAN5400182832157
    Country of origin
    • 1010:CN:China
    • 3311:CN:China
    • 1004:CN:China
    • 3110:CN:China
    • 3411:CN:China
  • Packaged Length8.5"
    Packaged Width8.5"
    Packaged Height8.4"
    Weight (with Packaging)9.87 Lb
  • Product TypeSpindles
    Prop 65 DescriptionWARNING: This product can expose you to chemicals including Nickel, known to the State of California to cause cancer, and lead, known to the state of California to cause birth defects and reproductive harm. For more information go to www.P65Warnings.ca.gov
    OEM Product ModelsToro - 105-6176|Toro - 74209/Z253|Toro - 74212/Z252L|Toro - 74203/Z255|Toro - 74213/Z287L|Toro - 74234/Z255|Toro - 74240/Z286E|Toro - 74236/Z287L|Toro - 74258/Z288E|Toro - 74231/Z257|Toro - 74226/Z255|Toro - 74225/Z253|Toro - 74218/Z256|Toro - 74216/Z283L
    OEM Product Parts
    • Rotary - 13621
    • Toro - 99-4640
    • Laser - 97730
    • Stens - 285-714
    • Toro - 139-2357
