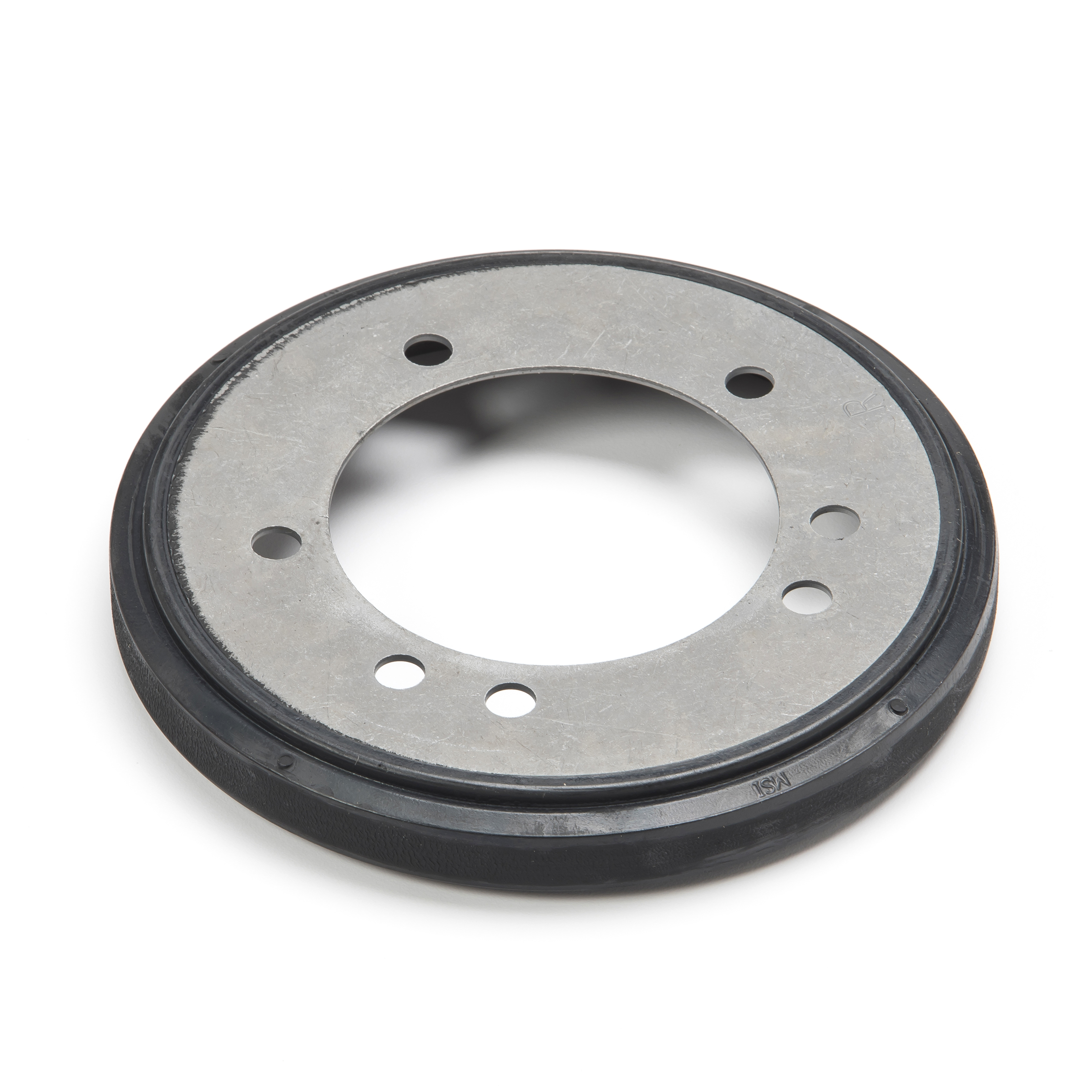

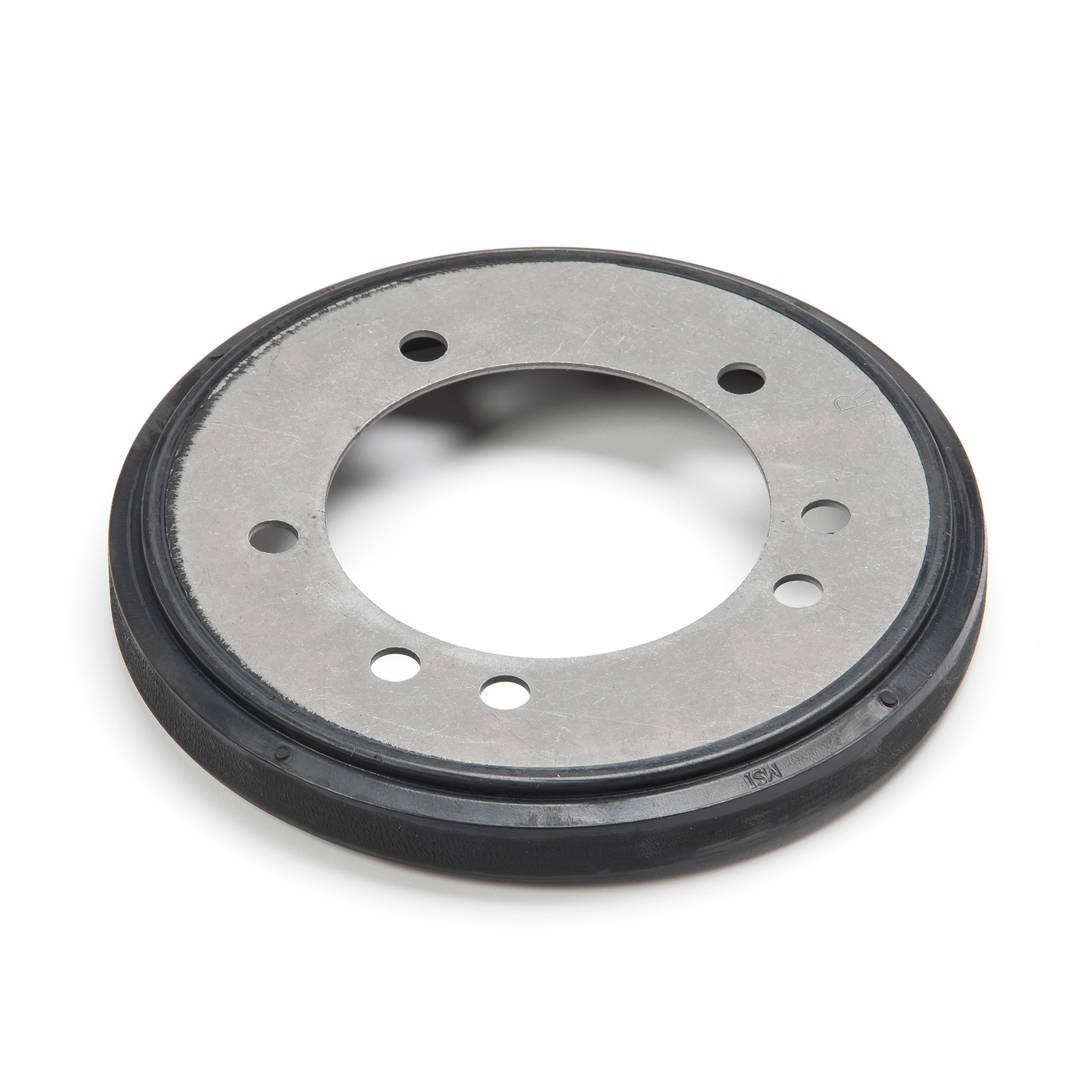

Drive Disc, Snapper Snow Thrower

76-067-0

Description	This drive disc is for Snapper rear engine riders, large frame snow throwers, tractor with standard drive and rear tine tillers.
Bullet Points	For rear engine riders, large frame snow throwers, tractor with standard drive and rear tine tillers (RTS, RTB) Outer-diameter: 6", inner-diameter: 5-3/8" Replaces Ariens, Bolens, Case, Gilson, Jacobsen, John Deere, Lawn Boy, Snapper, Troy Bilt
UPC	032488760671
EAN	5400182610335
Country of origin	3331:CN:China 1004:CN:China 3110:CN:China 3311:US:United States 1010:US:United States 3411:CN:China

Packaged Length 6.4"
Packaged Width 6.5"
Packaged Height 1.4"
Packaged Gross Weight 0.65 Lb
Packaged LengthDepth Pack 0.0"
Packaged Width Pack 0.0"
Packaged Height Pack 0.0"
Gross Weight Carton 0.0 Lb

Product Type	Spindles
OEM Product Models	Ariens - 10942-000001\|Ariens - 10954-000001\|Ariens - 10962-000001\|Ariens - 10969-000001\|Ariens - 10M4-004501\|Ariens - 10M5-000001\|Ariens - 10M6-046101\|Ariens - 10970-000001\|Ariens - 10M6D-045201\|Ariens - 10ML60-024001\|Ariens - 10ML60-015001\|Ariens - 10ML60D-017001\|Ariens - 12970-000001\|Ariens - 12971-000001\|Ariens - 12972-000001\|Ariens - 12979-000001\|Ariens - 10965-000001\|Ariens - 12982-000001\|Ariens - 12983-000001\|Ariens - 12984-000001\|Ariens - 12995-000001\|Ariens - 12M4-000001\|Ariens - 12M4-013001\|Ariens - 12M4-016601\|Ariens - 12M5-000001\|Ariens - 12M5-008501\|Ariens - 327 models\|Ariens - 910002-000001\|Ariens - 910006-000101\|Ariens - 10M7D-000101\|Ariens - 910008-000101\|Ariens - 910009-000101\|Ariens - 910010-000101\|Ariens - 910013-000101\|Ariens - 910013-007001\|Ariens - 910014-000101\|Ariens - 910016-000101\|Ariens - 910017-000101\|Ariens - 910017-005001\|Ariens - 910018-000101\|Ariens - 910018-002001\|Ariens - 910019-000101\|Ariens - 910007-000101\|Ariens - 910021-000101\|Ariens - 910942-000001\|Ariens - 910954-000001\|Ariens - 910955-000001\|Ariens - 910955-009300\|Ariens - 910962-000001\|Ariens - 910965-000001\|Ariens - 910995-000001\|Ariens - 12981-000001\|Ariens - 912001-000001\|Ariens - 912002-000001\|Ariens - 912003-000001\|Ariens - 910995-080000\|Ariens - 10M4-012101\|Ariens - 10ML60D-006001\|Ariens - 912005-006400\|Ariens - 912005-013140\|Ariens - 912006-000101\|Ariens - 912004-009000\|Ariens - 912005-000101\|Ariens - 912007-000101\|Ariens - 912007-002300\|Ariens - 912008-000101\|Ariens - 912008-003501\|Ariens - 912006-006175\|Ariens - 912008-006668\|Ariens - 912009-008605\|Ariens - 912010-000101\|Ariens - 912011-000101\|Ariens - 912006-003000\|Ariens - 912012-000101\|Ariens - 912971-000001\|Ariens - 912972-000001\|Ariens - 912004-000101\|Ariens - 912009-000101\|Ariens - 916003 (035000 -\|Ariens - 916302\|Ariens - 916303\|Ariens - 920001\|Ariens - 920002\|Ariens - 920003\|Ariens - 920006\|Ariens - 920007\|Ariens - 920008\|Ariens - 920010\|Ariens - 920012\|Ariens - 920013\|Ariens - 920014\|Ariens - 920015\|Ariens - 920016\|Ariens - 920020\|Ariens - 920021\|Ariens - 916003\|Ariens - 920300\|Ariens - 920301\|Ariens - 916003 (000101 -\|Ariens - 920303\|Ariens - 920304\|Ariens - 920305\|Ariens - 10ML35-006001\|Ariens - 920307\|Ariens - 920308\|Ariens - 920309\|Ariens - 920310\|Ariens - 920311\|Ariens - 920312\|Ariens - 920313\|Ariens - 10M5-006801\|Ariens - 920315\|Ariens - 920316\|Ariens - 920317\|Ariens - 920318\|Ariens - 920320\|Ariens - 920321\|Ariens - 920324\|Ariens - 920325\|Ariens - 920326\|Ariens - 920400\|Ariens - 920401\|Ariens - 920402\|Ariens - 920403\|Ariens - 920404\|Ariens - 920405\|Ariens - 920500\|Ariens - 920501\|Ariens - 921002\|Ariens - 921003\|Ariens - 921004\|Ariens - 921005\|Ariens - 921006\|Ariens - 921007\|Ariens - 921008\|Ariens - 921009\|Ariens - 921010\|Ariens - 921011\|Ariens - 921012\|Ariens - 921013\|Ariens - 921014\|Ariens - 921015\|Ariens - 921016\|Ariens - 920314\|Ariens - 921018\|Ariens - 921019\|Ariens - 924013-000201\|Ariens - 924016-000101\|Ariens - 924018-000101\|Ariens - 924020-000101\|Ariens - 924022-000101\|Ariens - 924023-000101\|Ariens - 924024-000101\|Ariens - 924024-005401\|Ariens - 924024-012001\|Ariens - 924025-000101\|Ariens - 924025-000301\|Ariens - 924026-000101\|Ariens - 924026-008001\|Ariens - 924026-022001\|Ariens - 924027-000101\|Ariens - 924027-000401\|Gilson - 916003 (075000-\|Gilson - 916302 (000101 -\|Jacobsen - 916303 (000101-\|Lawn-Boy - 920008 (000101 -\|Snapper - 10300S\|Snapper - 10301\|Snapper - 10303\|Snapper - 10303E\|Snapper - 10304E\|Snapper - 10305\|Snapper - 10305E\|Snapper - 11305\|Snapper - 11306\|Snapper - 25062\|Snapper - 25062S\|Snapper - 25063\|Snapper - 25063S\|Snapper - 25083\|Snapper - 25083S\|Snapper - 26062\|Snapper - 26062S\|Snapper - 26063\|Snapper - 26063S\|Snapper - 26083\|Snapper - 26083S\|Snapper - 2650\|Snapper - 2650S\|Snapper - 2651\|Snapper - 2651S\|Snapper - 2652\|Snapper - 2652S\|Snapper - 265X\|Ariens - 920302\|Snapper - 2661S\|Ariens - 912970-000001\|Ariens - 920306\|Snapper - 2681\|Snapper - 2681S\|Snapper - 268X\|Snapper - 268XS\|Snapper - 28083\|Snapper - 28083S\|Snapper - 28113S\|Snapper - 30083\|Snapper - 30083S\|Ariens - 921017\|Snapper - 3080\|Ariens - 920022\|Snapper - 2680S\|Ariens - 910020-000101\|Snapper - 308X\|Snapper - 3081S\|Snapper - 33113S\|Snapper - 4210WS\|Snapper - 42113S\|Snapper - 5230\|Snapper - 5241\|Snapper - 8230\|Snapper - 8241\|Snapper - 8243\|Snapper - 8243E\|Snapper - 8245\|Snapper - 8246\|Snapper - 8260\|Snapper - 8261\|Snapper - 8263\|Snapper - 8263E\|Snapper - 8264\|Snapper - 8265\|Snapper - 920001 (000101 -\|Snapper - 920001 (026500 -\|Snapper - 920002 (000101-\|Snapper - 920003 (000101 -\|Snapper - 920006 (000101 -\|Snapper - 920007 (000101 -\|Snapper - 3081\|Snapper - 9266\|Snapper - 9266E\|Snapper - E10305\|Snapper - E10305E\|Snapper - E11305\|Snapper - E11306\|Snapper - E8265\|Snapper - E9265\|Snapper - E9266\|Snapper - G10303\|Snapper - 265XS\|Snapper - 2680\|Snapper - 9265\|Snapper - 30113S\|Snapper - N10300\|Snapper - G11302B\|Snapper - 3080S\|Snapper - 308XS\|Snapper - N8260\|Snapper - R5002B\|Snapper - R5002R\|Snapper - R8000\|Snapper - R8001\|Snapper - R8001S\|Snapper - R8002\|Snapper - R8002B\|Snapper - R8002BE\|Snapper - GM7262M\|Snapper - RT5\|Snapper - RT5X\|Snapper - RT8\|Snapper - R5001\|Snapper - N10305E\|Snapper - LT11000\|Snapper - GM5241M\|Snapper - RT8S\|Snapper - R5000\|Snapper - R8002S
OEM Product Parts	Ariens - 00300300 Ariens - 01027900 Ariens - 3003 Ariens - 17080 Jacobsen - 158458 John Deere - AM122115 Laser - 97065 Lawn-Boy - 741316 Rotary - 300 Snapper - 1-0765 Snapper - 10765 Snapper - 7010765 Snapper - 70110765 Ariens - 170800 Snapper - 7018782 Stens - 240-394 Troy-Bilt - 1720859 Gilson - 32222 Case - 2289 Snapper - 7018782SM Bolens - 1720859 Gilson - 18915 Ariens - 300300

Packaged Length	6.4"
Packaged Width	6.5"
Packaged Height	1.4"
Packaged Gross Weight	0.65 Lb
Packaged LengthDepth Pack	0.0"
Packaged Width Pack	0.0"
Packaged Height Pack	0.0"
Gross Weight Carton	0.0 Lb
