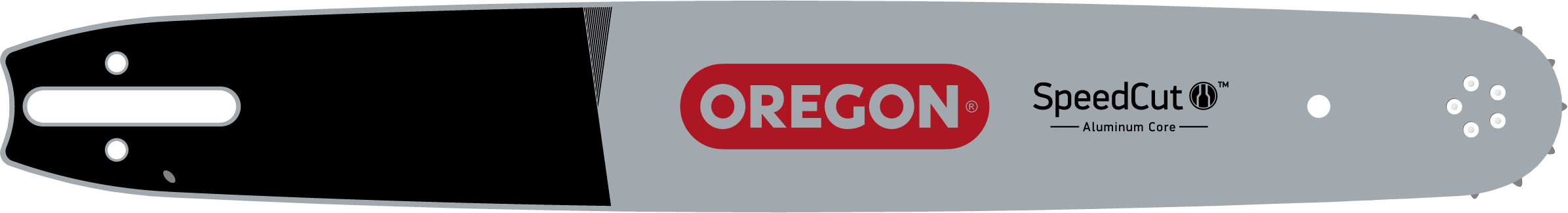

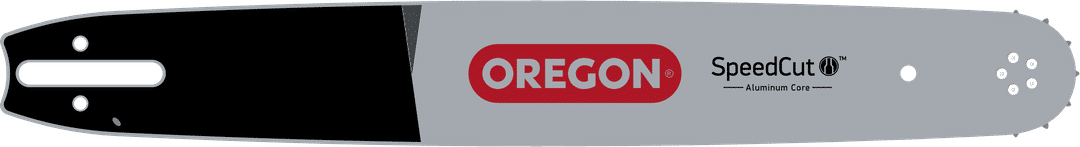

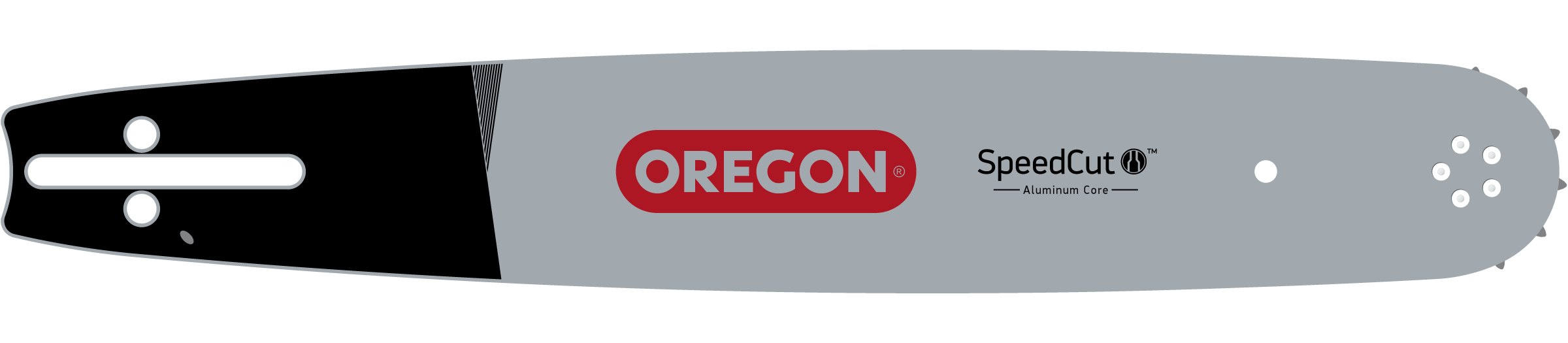

SpeedCut™ Guide Bar, .325 Series, 18"

180TXLGD025

Description	The 180TXLGD025 SpeedCut guide bar is a top-performing, 18" chain saw bar compatible with several Stihl chain saw models including 024, 024 Super, 026, 026P, and 028 Super. Check the Fit Guide to see if this bar works with your saw. SpeedCut's narrow kerf system requires less power, resulting in faster cuts. This guide bar is lighter, stiffer and stronger than our other light weight bars. The debris shield increases the bar's durability in difficult work environments. The all new bearing-grade steel sprocket nose assembly resists spreading and wear. A new UV paint process prevents paint from getting stuck in the bar groove, while maintaining accurate gauge through the working life of the saw. Precision bar grooves provide better fit-up and reduced wear. LubriTec keeps your bar and chain oiled, allowing for less friction and a longer life. This bar must be used with .325" narrow-kerf chain.
Bullet Points	.325" narrow-kerf chain and bar must be used together.
UPC	036577573920
EAN	5400182238669
globalTradeItemNumber (GTIN)	10036577573927
Country of origin	3331:CN:China 1010:CN:China 1004:CN:China 5001:CN:China 3311:CN:China 3110:CN:China 3411:CN:China

Packaged Length	22.88"
Packaged Width	3.38"
Packaged Height	0.19"
Packaged Gross Weight	1.64 Lb
Packaged LengthDepth Pack	0.0"
Packaged Width Pack	0.0"
Packaged Height Pack	0.0"
Packaged LengthDepth Carton	26.12"
Packaged Width Carton	4.0"
Packaged Height Carton	3.38"
Gross Weight Carton	16.84 Lb

Product Type	Guide Bar
Prop 65 Description	WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
OEM Product Models	Stihl - 024\|Stihl - 024 Super\|Stihl - 026\|Stihl - 026P\|Stihl - 028 Super\|Stihl - 029\|Stihl - 031\|Stihl - 034\|Stihl - 028\|Stihl - 032\|Stihl - 034 SUPER\|Stihl - MS 260\|Stihl - MS 260 Pro\|Stihl - MS 261\|Stihl - MS 261 C-M\|Stihl - MS 261 C-MQ\|Stihl - MS 261 CQ\|Stihl - MS 270\|Stihl - MS 270 C\|Stihl - MS 270 C-B\|Stihl - MS 270 CQS\|Stihl - MS 271\|Stihl - MS 280\|Stihl - MS 280 C-BQ\|Stihl - MS 280 CQS\|Stihl - MS 290\|Stihl - MS 291\|Stihl - MS 291 C-BEQ\|Stihl - MS 360\|Stihl - MS 360 C\|Stihl - MS 360 Pro\|Stihl - MS 360 QS\|Stihl - MS 361\|Stihl - MS 361 C-B\|Stihl - 030\|Stihl - MS 390\|Stihl - 036 PRO\|Stihl - 026 PRO\|Stihl - 036\|Stihl - 040\|Stihl - MS 361 QS\|Stihl - 036 QS\|Stihl - 039\|Stihl - E220\|Stihl - MS 240\|Stihl - MS 281\|Stihl - MS 362\|Stihl - MSE 220\|Stihl - MS 261\|Stihl - MS 261 C-M\|Stihl - MS 261 C-M VW\|Stihl - MS 271\|Stihl - MS 261 C-BM\|Stihl - MSA 300\|Stihl - MSA 300 C-O\|Stihl - MS 271 C-BE

ASIN	B072FTG7K3
Bar Length	18.0"
Bar Nose Radius	Large
Bullet Points	.325" narrow-kerf chain and bar must be used together.
Casual	false
Category	SpeedCut Guide Bars
Color	Medium Grey
Country of origin	3331:CN:China 1010:CN:China 1004:CN:China 5001:CN:China 3311:CN:China 3110:CN:China 3411:CN:China
Drive Links	74.0
EAN	5400182238669
Gauge	0.05"
globalTradeItemNumber (GTIN)	10036577573927
Images	https://images.salsify.com/image/upload/s--Ff5-vKJ0--/kvr3nyca94y60tad7rqw.png https://youtu.be/CfH7y8zhtYs https://youtu.be/_TDWj2zFt80 https://images.salsify.com/image/upload/s---TawOm26--/jihlraoyrfbumftap9zf.png https://images.salsify.com/image/upload/s--k3UzsP3h--/glcf750s0aratoigdtwi.png
Intenz	false
Lowes Part Num	5001726931
MFG Brand Name	Oregon
MFG Name	Oregon Tool
Narrow Kerf	true
Net Weight Carton	16.4 Lb
Obsolete	false
OEM Product Models	Stihl - 024\|Stihl - 024 Super\|Stihl - 026\|Stihl - 026P\|Stihl - 028 Super\|Stihl - 029\|Stihl - 031\|Stihl - 034\|Stihl - 028\|Stihl - 032\|Stihl - 034 SUPER\|Stihl - MS 260\|Stihl - MS 260 Pro\|Stihl - MS 261\|Stihl - MS 261 C-M\|Stihl - MS 261 C-MQ\|Stihl - MS 261 CQ\|Stihl - MS 270\|Stihl - MS 270 C\|Stihl - MS 270 C-B\|Stihl - MS 270 CQS\|Stihl - MS 271\|Stihl - MS 280\|Stihl - MS 280 C-BQ\|Stihl - MS 280 CQS\|Stihl - MS 290\|Stihl - MS 291\|Stihl - MS 291 C-BEQ\|Stihl - MS 360\|Stihl - MS 360 C\|Stihl - MS 360 Pro\|Stihl - MS 360 QS\|Stihl - MS 361\|Stihl - MS 361 C-B\|Stihl - 030\|Stihl - MS 390\|Stihl - 036 PRO\|Stihl - 026 PRO\|Stihl - 036\|Stihl - 040\|Stihl - MS 361 QS\|Stihl - 036 QS\|Stihl - 039\|Stihl - E220\|Stihl - MS 240\|Stihl - MS 281\|Stihl - MS 362\|Stihl - MSE 220\|Stihl - MS 261\|Stihl - MS 261 C-M\|Stihl - MS 261 C-M VW\|Stihl - MS 271\|Stihl - MS 261 C-BM\|Stihl - MSA 300\|Stihl - MSA 300 C-O\|Stihl - MS 271 C-BE
Packaged Height	0.19"
Packaged Height Carton	3.38"
Packaged Height Pack	0.0"
Packaged Length	22.88"
Packaged LengthDepth Carton	26.12"
Packaged LengthDepth Pack	0.0"
Packaged Width	3.38"
Packaged Width Carton	4.0"
Packaged Width Pack	0.0"
PAHS status	false
Pitch	.325"
Product Code	180TXLGD025
Product Family	SpeedCut™
Product Name	SpeedCut™ Guide Bar, .325 Series, 18"
Product Status	Discontinued
Product Type	Guide Bar
Product UOM	Each
Professional	true
Prop 65 Description	WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Quantity of EAorPAC in Carton	10.0
REACH status	false
ROHS status	false
SAP Del All	false
SAP Del DistChain	false
Sellable Online	false
Sprocket Nose Tooth Count	12.0
Summary	A top-performing 18 inch guide bar that works with several Stihl models. Get product specs and fit up info at OregonProducts.com.
Tail Mount	D025
UPC	036577573920
URL	https://www.oregonproducts.com/speedcut%e2%84%a2-guide-bar%2c-325-series%2c-18%22/p/180txlgd025
Use DAM Assets	false
Visible	true
Volume	0.47 dm³
Weight	1.64
Weight (with Packaging)	1.64 Lb
Whole Good	No
