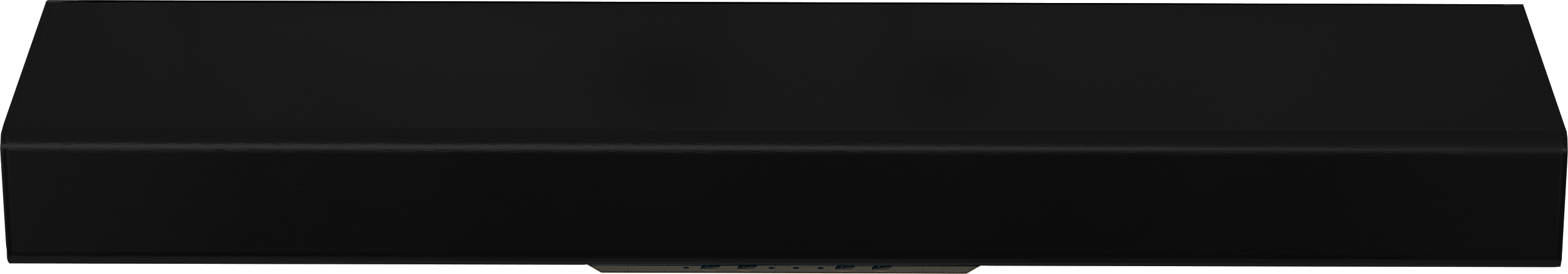

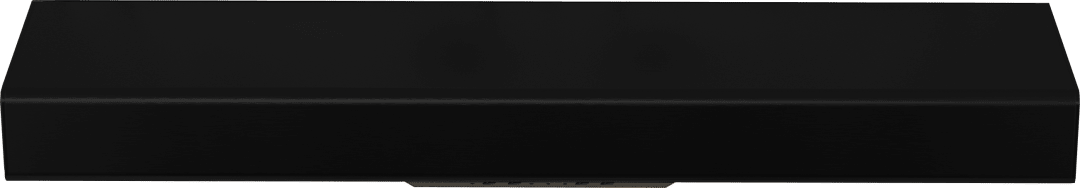

AK1100B
Head On IsoDownload

Range Hood

AK1100B

Breeze I Under-Cabinet

  • Its sophisticated features and performance set the industry value standard. Its three-speed, 250-CFM blowers quietly clear the air while convenient dishwasher-safe aluminum filters efficiently remove airborne residues. Sleek, integrated controls simplify cleanup, and the dual-level halogen light bulbs let you set a low-key mood when the time is right. Now available with Bloom™ GU10 LED upgrade option.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelAK1100BB
    Model #AK1100B
    MSRP ($)$219
    Short DescriptionBreeze I, UC, 30", Blk, 250 CFM
    CollectionCore Collection
    UPC646328110023
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Voltage120
    Maximum Amperage1.3
    ColorBlack
    Blower Speeds3
    Watts Per Bulb35
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 32
    Compatible Models0AK11-21001, Z0B0040, 0AK11-20001
    Country of OriginTaiwan
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200012
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN3.25 x 10
  • Net Height; IN5.5
    Net Width; IN29.9375
    Nominal Width; IN30
    Net Depth; IN20.25
    Weight; LBS19
  • Feature 1Value driven
    Feature 2Low-profile body
    Feature 2 DefinitionLow-profile body for a minimalist appearance.
    Feature 3Extra-wide mesh filters
    Feature 3 DefinitionHigh quality mesh filters with an increased width for improved capture and performance.
    Feature 4Optional Ductless Recirculating Kit
    Feature 4 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 5Multiple color options
    Feature 5 DefinitionMultiple colors available to match your kitchen decor.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM250
    Internal Blower 1 Min. Sones1.8
    Internal Blower 1 Max Sones3.5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN24.61
    Shipping Length; IN33.66
    Shipping Width; IN9.17
    Shipping Weight; LBS24.9
  • Optional Accessory 10AK11-21001
    Optional Accessory 2Z0B0040
    Optional Accessory 30AK11-20001
  • 0AK11-21001
